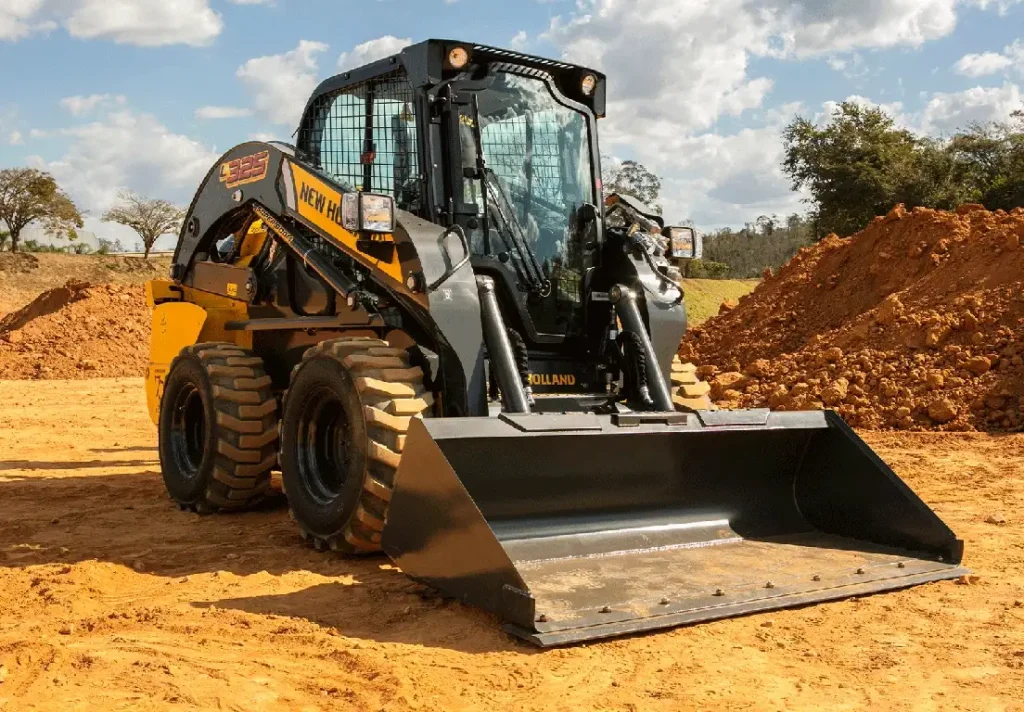

NEW HOLLAND L325

HEAVY-DUTY LOADER
The New Holland L325 is engineered for heavy-duty applications, featuring vertical lift geometry for maximum reach and lift height. With a robust rated operating capacity of 1135 kg and an FPT engine delivering 61 kW/82 hp, it’s built to handle large loads with ease and precision.

POWERFULLY COMPACT
New Holland skid steer and compact track loaders deliver huge performance. You will zip through your tasks in the smallest spaces with their compact size, exceptional all round visibility and manoeuvrability, without compromising comfort or safety. Your productivity will soar, with the fast cycles resulting from the perfect balance, superior stability and powerful hydraulic system. You will reach easily right up to the centre of the truck bed, loading fast from one side with New Holland’s patented SuperBoom®; – the best boom in the industry.

FINISH JOBS FASTER WITH SUPER BOOM®
The Super Boom® vertical lift linkage provides more dump height and reach, so you can load material into the center of high-sided truck boxes or hoppers. But, it also maximises visibility, providing a clear view to the cutting edge, to the bucket at full height, and to the sides and rear. Super Boom provides the best of both: more performance and greater visibility all around.

GET MORE COMFORTABLE, BE MORE PRODUCTIVE
New Holland 300 Series loaders make comfort a priority and, as a result, make you more productive on the job. New features include improved joystick controls to reduce thumb fatigue and an optimised startup procedure. 300 Series loaders also provide automatic straight-line tracking (on EH models only) to improve productivity and precision when working with a trencher or cold planer.

CUSTOMISED CONTROL
New, ergonomically designed joysticks allow for a lower-profile control grip and feature soft buttons to reduce fatigue in the thumbs. New pods positioned below the joysticks provide more room between the operator’s knees.

FAST CYCLE TIMES, SMOOTH OPERATION
The reliable hydraulic system delivers fast cycle times. In-line hydraulic pumps produce less noise and provide extra-smooth operation. Add the optional high-flow hydraulics on all models except the L313 and L315 to run attachments hour after hour.

EASY ACCESS AND SIMPLIFIED SERVICE
Easy access makes daily service and maintenance more convenient. Further more; all major service points are grouped together and effortlessly reached by flipping the cab forward.

Specifications

DIMENSIONS
Top of ROPS 2004mm
Over all width 1773mm
Length with bucket 3858mm
Bottom of bucket fully raised height 3115mm
Maximum dump height 2454mm @ 45°
Maximum reach 974mm
Wheelbase 1322mm
Ground clearance 204mm

SPECIFICATIONS
Boom geometry Vertical
Rated operating capacity 50% (ROC) 1135kg
Tipping load 2268kg
Bucket breakout force 28,3kN

ENGINE
Engine manufacturer FPT
Displacement 3.2l
Power Output 82hp @ 2500 rpm
Peak Torque 305Nm @ 1400 rpm

TRAVEL SPEED
Low range 12.7km/h
High range 16,9km/h

HYDRAULIC SYSTEM
Pump flow rate STD 85l/min
Operating pressure STD 210bar
High flow option 131l/min
High flow pressure option 210bar

WEIGHTS
Operating weight 3580kg
