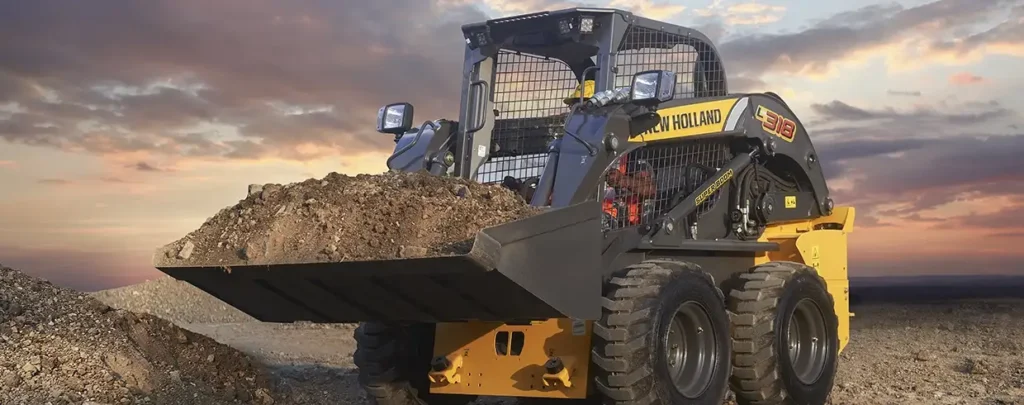

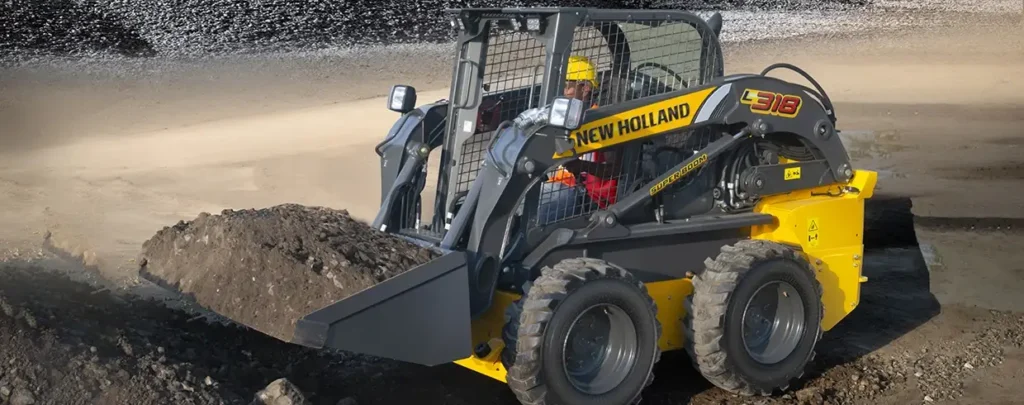

NEW HOLLAND L318

VERSATILE PERFORMER
Experience versatility with the L318 skid steer loader, designed with vertical lift geometry for superior reach and loading capacity. With an impressive 818 kg rated operating capacity and a high-flow hydraulic system option, it’s ready for heavy-duty attachments.

POWERFULLY COMPACT
New Holland skid steer and compact track loaders deliver huge performance. You will zip through your tasks in the smallest spaces with their compact size, exceptional all round visibility and manoeuvrability, without compromising comfort or safety. Your productivity will soar, with the fast cycles resulting from the perfect balance, superior stability and powerful hydraulic system. You will reach easily right up to the centre of the truck bed, loading fast from one side with New Holland’s patented SuperBoom®; – the best boom in the industry.

FINISH JOBS FASTER WITH SUPER BOOM®
The Super Boom® vertical lift linkage provides more dump height and reach, so you can load material into the center of high-sided truck boxes or hoppers. But, it also maximises visibility, providing a clear view to the cutting edge, to the bucket at full height, and to the sides and rear. Super Boom provides the best of both: more performance and greater visibility all around.

GET MORE COMFORTABLE, BE MORE PRODUCTIVE
New Holland 300 Series loaders make comfort a priority and, as a result, make you more productive on the job. New features include improved joystick controls to reduce thumb fatigue and an optimised startup procedure. 300 Series loaders also provide automatic straight-line tracking (on EH models only) to improve productivity and precision when working with a trencher or cold planer.

CUSTOMISED CONTROL
New, ergonomically designed joysticks allow for a lower-profile control grip and feature soft buttons to reduce fatigue in the thumbs. New pods positioned below the joysticks provide more room between the operator’s knees.

FAST CYCLE TIMES, SMOOTH OPERATION
The reliable hydraulic system delivers fast cycle times. In-line hydraulic pumps produce less noise and provide extra-smooth operation. Add the optional high-flow hydraulics on all models except the L313 and L315 to run attachments hour after hour.

EASY ACCESS AND SIMPLIFIED SERVICE
Easy access makes daily service and maintenance more convenient. Further more; all major service points are grouped together and effortlessly reached by flipping the cab forward.

Specifications

DIMENSIONS
Top of ROPS 1974mm
Over all width 1642mm
Length with bucket 3585mm
Bottom of bucket fully raised height 2877mm
Maximum dump height 2214mm @ 45°
Maximum reach 946mm
Wheelbase 1128mm
Ground clearance 178mm

SPECIFICATIONS
Boom geometry Vertical
Rated operating capacity 50% (ROC) 818kg
Tipping load 1633kg
Bucket breakout force 24,7kN

ENGINE
Engine manufacturer PERKINS
Displacement 2.2l
Power Output 60hp @ 2800 rpm
Peak Torque 171Nm @ 1800 rpm

TRAVEL SPEED
Low range 12.7km/h
High range 18

HYDRAULIC SYSTEM
Pump flow rate STD 72l/min
Operating pressure STD 210bar
High flow option 109l/min
High flow pressure option 210bar

WEIGHTS
Operating weight 2832kg
