KOBELCO SK380XDLC

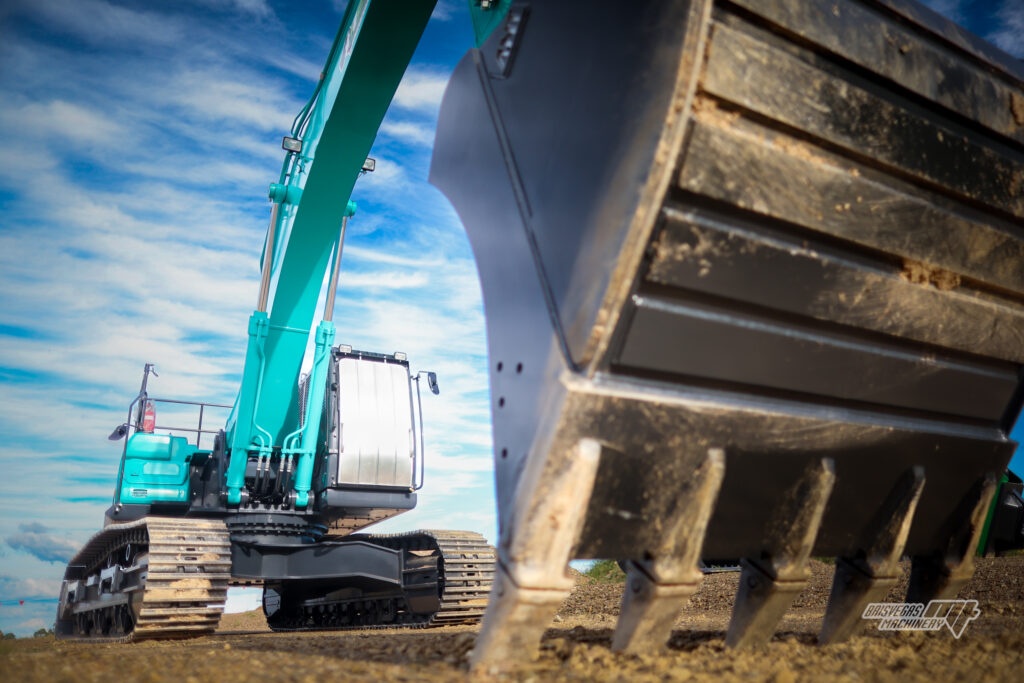

Fast digging cycle times are guaranteed with the impressive bucket breakout force of 244 kN with the SK380XDLC, and powerful slew torque of 120 kN, ensuring that machine productivity is kept at an all-time high. Best-in-class tractive force of 331 kN sets the benchmark for this class.

Kobelco’s GEOSCAN telematics system is also provided free of charge for 5 years, allowing remote access to a comprehensive set of machine operational and maintenance data from any web enabled device.

Features

• The SK380XD clocks up 37,700 kg on the scales, making it the heaviest excavator in its class.
• Delivers Kobelco’s innovative technology and legendary Japanese quality and reliability, bringing industry leading performance to the most demanding worksites.
• Includes Kobelco’s Extended Major Component Warranty of 4 years/6,000 hours!

Specifications

• Length, Width & Height: 11.3 x 3.26 x 3.43 m** (**600 mm shoe)
• Operating Weight: 37,700 kg
• Max. Digging Depth: 7.56 m
• Max. Digging Reach: 11.26 m
• Bucket Digging Force: 244 kN
• Arm Crowding Force: 180 kN
• Fuel Tank: 503 L
• Hydraulic Oil Tank: 245 (410) L
• Rated Power Output: 209 kW
• Rated Torque: 998 Nm
• Max. Pump Flow: 2 x 294 L/min + 21, 43 L/min
• Standard Auxiliary: N&B + Tilt Piping
