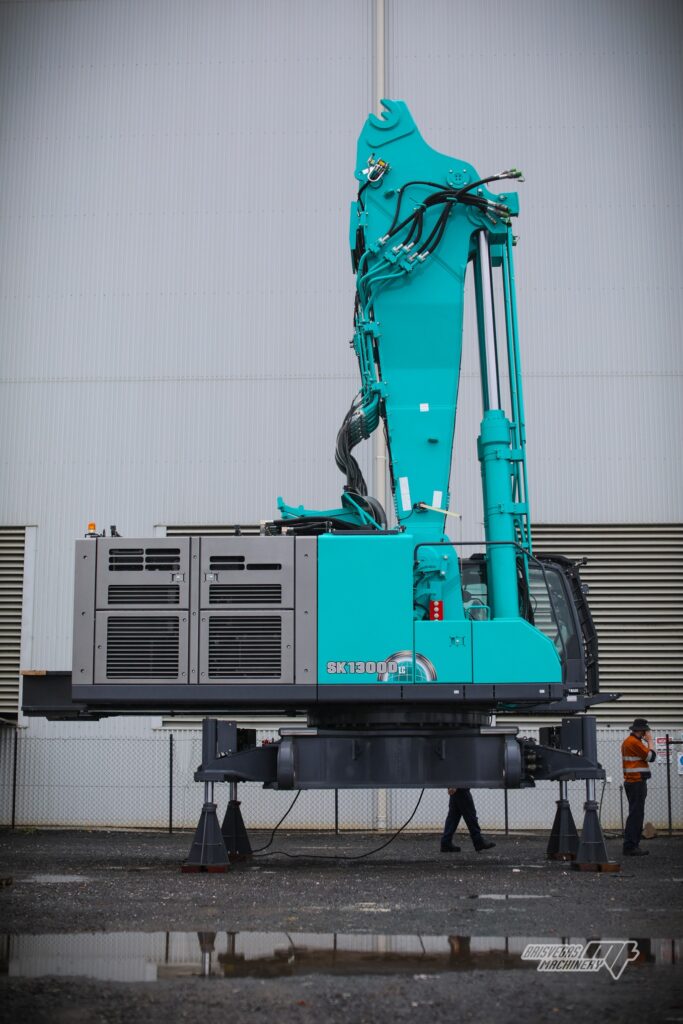

KOBELCO SK1300DLC

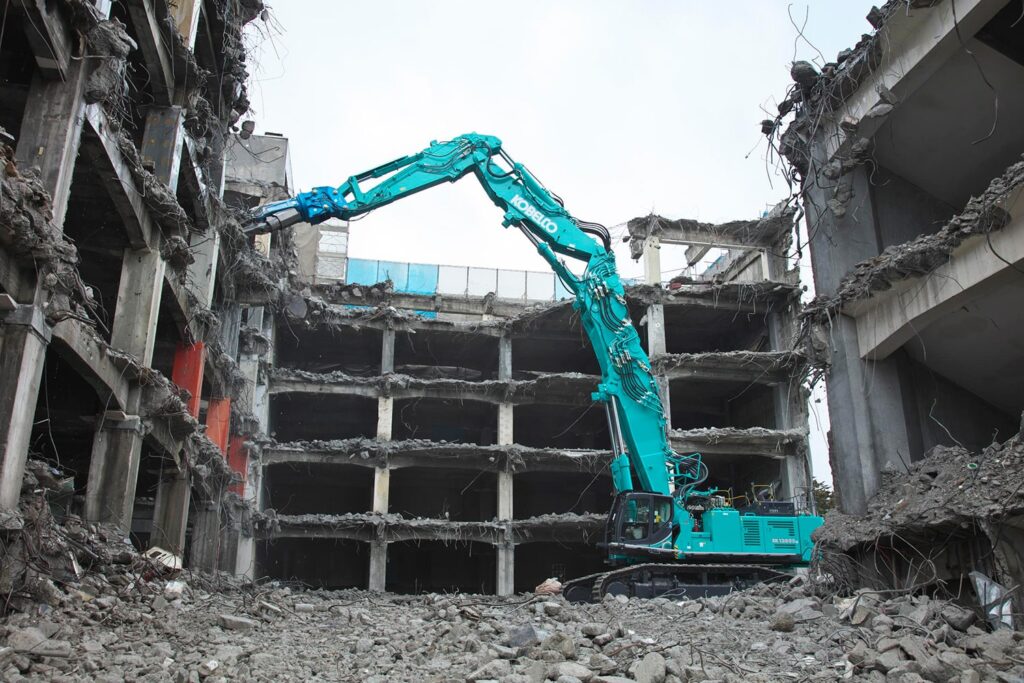

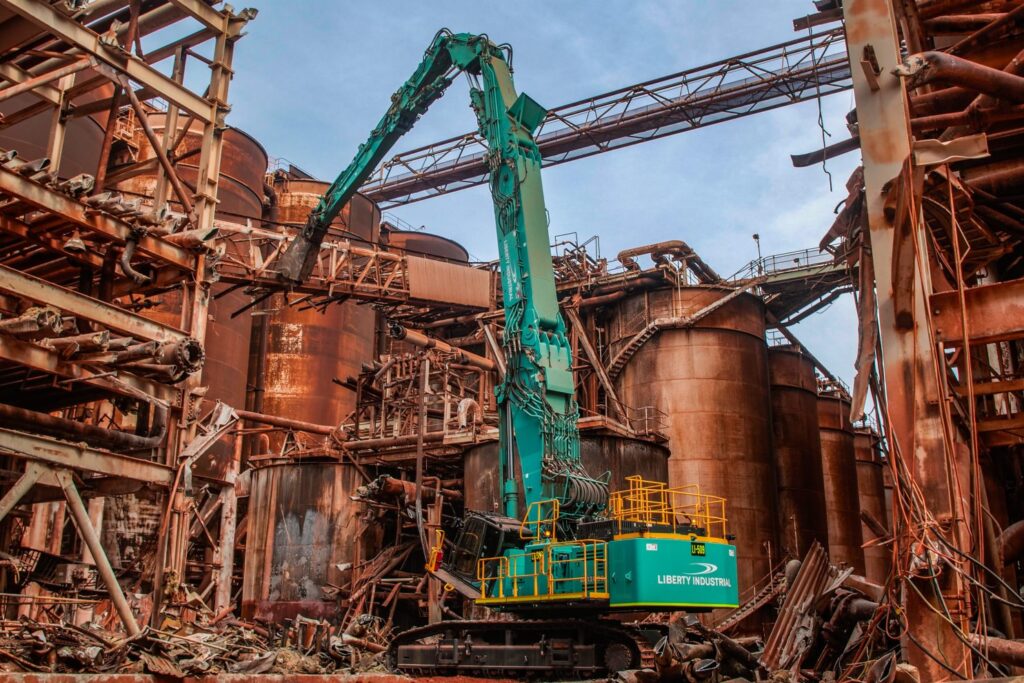

There is literally no job too big for the Kobelco SK1300DLC. With an operating weight of 130 tonnes and a colossal reach of up to 40m, the SK1300DLC is currently the world’s largest OEM manufactured building demolition machine. Its introduction to the European market in March 2022 was met with high expectations due to its superior productivity, versatility, easy transportation and the ability to use more powerful crushers at new heights

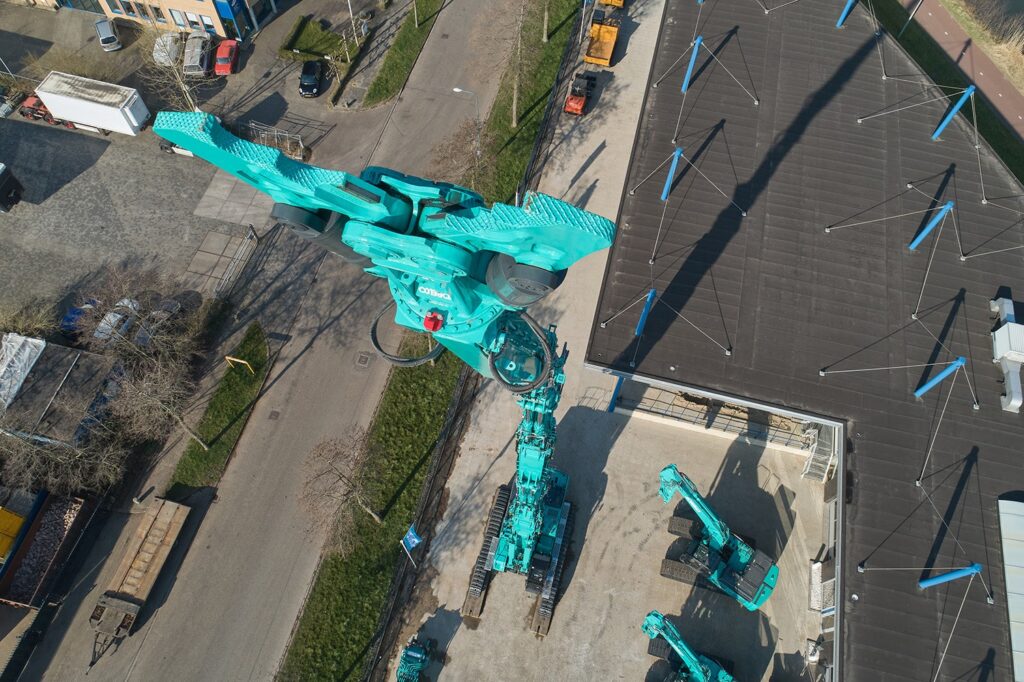

The NEXT ADVANCE 4-piece high reach demolition attachment was developed to achieve greater working heights with heavier tools; the new articulated structure enables a heavy tool to be elevated while keeping the machine’s centre of gravity low. This makes it possible to overcome the current operational limits of other 100 tonne-class machines.

Features

•   Larger tools, higher reach. Rebuilding the future with the Kobelco SK1300DLC.
•   World’s largest OEM manufactured building demolition machine.
•   Kobelco-developed NEXT ADVANCE system means that it can be adapted for multiple applications on the jobsite.Specifications

Specifications

• Length, Width & Height 10.92 m x 5.19 m x 4.83 m
• Operating Weight 136,900 kg
• Fuel Tank 960 L
• Hydraulic Oil Tank 599 (1,070) L
• Max. Digging Depth 12.68 m
• Max. Digging Reach 40 m at 4.3 tonne
• Rated Power Output 380 kW
• Rated Torque 998 Nm
• Max. Pump Flow 2 x 504 L/min + 49.3, 30.1 L/min
• Standard Auxiliary N&B + Tilt Piping
